GYS · Synergic Pulse MIG/MAG Welder · Ref. 091443 · New 270 A model, replaces the 220 A (080928)

GYSP3 GYS AUTO 270A

Built for aluminum. Ready for anything.

The new P3: a 270 A single-phase synergic pulse inverter with three built-in wire feeders, so steel, aluminum and silicon bronze are each loaded, gassed and ready — pull the trigger on the torch you need and the machine switches. Legend M5 smart setup, over 50 OEM synergies, Modularc Pulse for thin HSS and aluminum, 200 job memories, UL-compatible 208/240 V. Built in France; imported, supported and trained by CRTE.

  • 10–270 A pulse MIG/MAG
  • Three independent wire feeders
  • 208–240 V single-phase · UL-compatible
  • Steel · aluminum · CuSi / CuAl

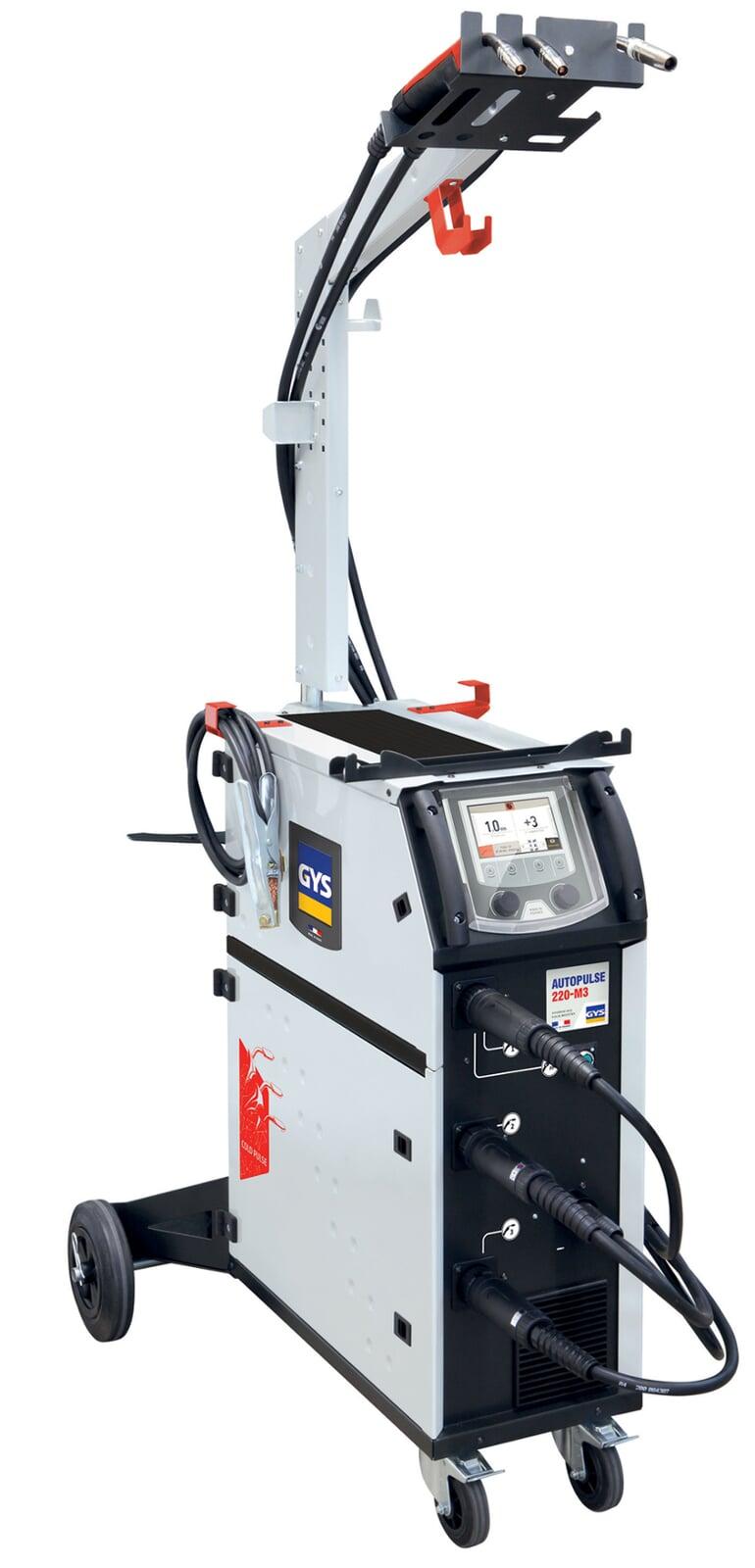

Ref. 091443 · 208–240 V 1-ph · ULGYS P3 GYS AUTO 270A three-torch pulse MIG welder with boom
270 AMax current
3Wire feeders
200Job memories
270AMax welding current
3Built-in wire feeders
1-ph208–240 VSingle-phase input
200Stored job programs
3×118" torchesSteel · aluminum · CuSi
153lbReady to roll

Key features and what they mean in the bay.

Built for your bay. Trusted for every weld.

1Triple wire feeder systemSwitch materials on the fly and save the time spool swaps cost a busy shop.
2270 A single-phase pulse inverterFifty more amps than the P3 it replaces — from ultra-thin outer panels to structural components, with full control and minimal spatter.
3Legend M5 smart setupType in the panel thickness and the machine sets and live-adjusts the parameters; Pro Mode shows the welding curve. Over 50 OEM-engineered synergies.
4Digital arc control & precision feedFast ignition and a stable, low-spatter arc, even on long weld runs or thin-gauge work.
5Pulse mode for aluminum & CuSiOEM-grade aluminum repair and silicon-bronze panel bonding without burn-through.
6200 job memories + USB updatesStandardize quality across technicians and jobs; load new synergies as OEMs release new materials.
7Reinforced wheels & dual gas supportRoll between bays and change gas type without downtime.
8Built for collision repairAutomotive-grade steel, aluminum and silicon bronze — engineered around OEM repair procedures.
Welding performance
Welding current range10 – 270 A
ProcessesMIG/MAG — Standard · Modularc Standard · Pulse · Modularc Pulse
Trigger modes2T and 4T · dedicated spot / continuous switch
MaterialsSteel, stainless steel, aluminum, CuSi, CuAl
Wire diametersSteel (mild, HSS, VHSS) 0.6 – 1.0 mm · aluminum 0.8 – 1.2 mm · CuSi / CuAl 0.8 and 1.0 mm
Pulse functionPulse and Modularc Pulse — aluminum, CuSi, thin HSS / VHSS
Arc controlDigital arc, low spatter, fast ignition
Feeders & torches
Built-in wire feeders3 — dedicated to steel, aluminum and CuSi
Wire feed system4-roller drives with digital encoder · 1 – 20 m/min · Ø 200 mm spools · insulated aluminum spool housing
Torches includedSteel 150 A, 118" (Ø 0.6 / 0.8 mm, ref. 063754) · Aluminum 250 A, 118" (Ø 1.0 / 1.2 mm, ref. 072138) · CuSi 150 A, 118" (Ø 1.0 mm, ref. 072121)
Earth clamp118" (3 m), 25 mm², detachable · boom arm included
Gas supportHolds up to 2 × 20 L (4 m³) cylinders · 3 solenoid valves on the inlet
Control & power
Display3.5" Legend M color interface · Pro Mode with the welding curve
Job memoryUp to 200 jobs · over 50 synergies · free Traceability add-on
UpdatesUSB port for software and synergy updates
Input voltage208 – 240 V, single-phase, 50/60 Hz · 16 A · UL-compatible
Generator useFrom 16 kVA · open-circuit voltage 67 V
CoolingOn-demand ventilation
Physical
Dimensions31.5" × 25.6" × 66.9" with boom (80 × 65 × 170 cm)
Weight153 lb (69.5 kg)
Protection classIP23S
ComplianceEN 60974-1
Made inFrance
Specifications per GYS documentation at time of publication and subject to change. Questions about your shop's power? See single-phase, sorted below.
Intelligent welding control

Three processes. One correct weld.

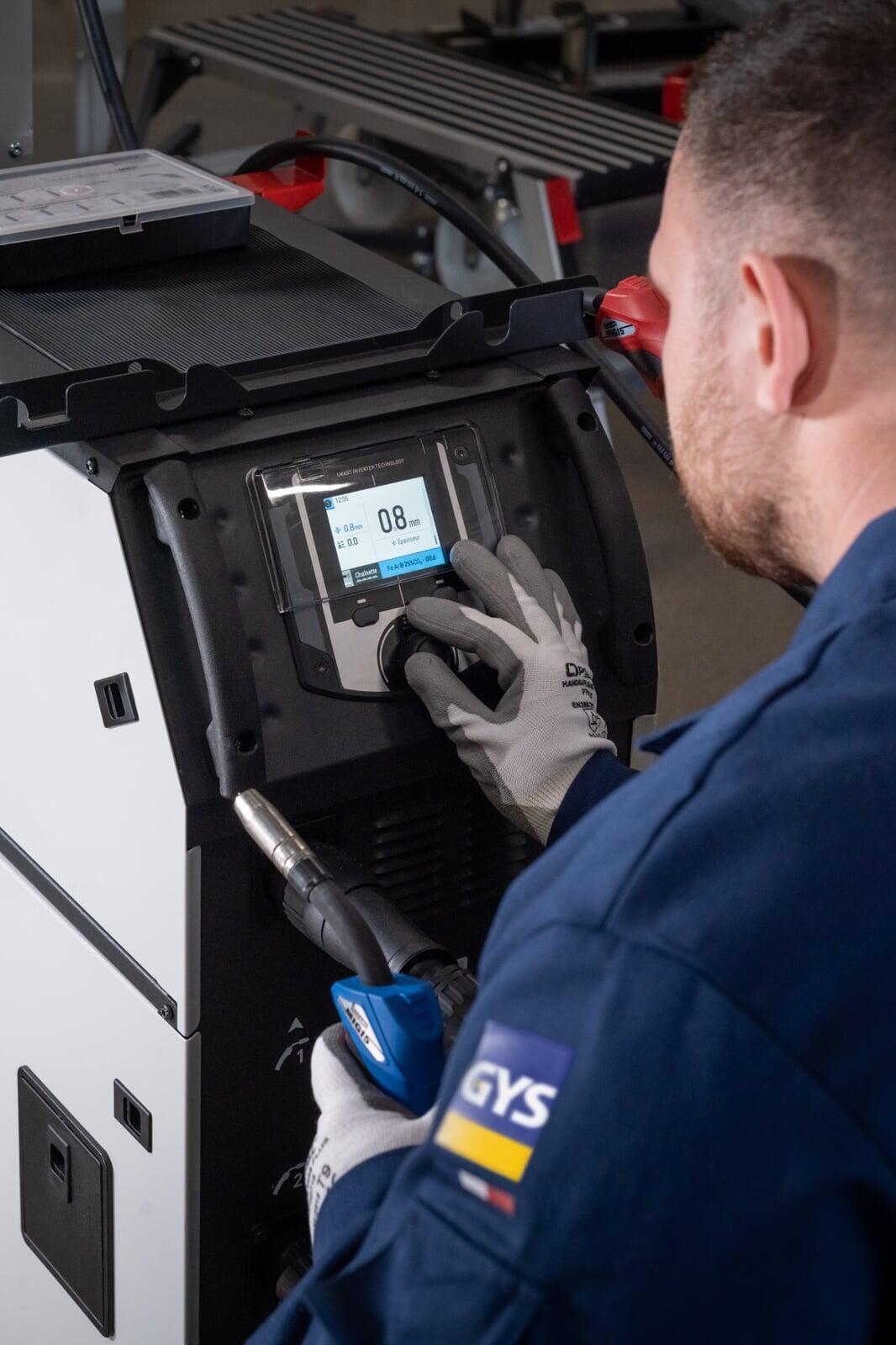

Choose the material and thickness on the 3.5" color screen and the P3 builds the synergy — current, voltage, wire speed and pulse. Save it as one of 200 jobs and every technician runs the same weld tomorrow.

Standard MIG/MAGSynergic short-arc for steel and stainless outers, rails and reinforcements.
PulseControlled heat input for aluminum and silicon-bronze — clean beads, no burn-through.
Modularc PulsePulse-in-pulse: even cooler welding for thin materials, HSS / VHSS and aluminum.
2T / 4TTrigger modes for short tacks or long seams without holding the trigger.

USB updates keep the synergy library current as OEMs bring new alloys into production.

Shop power

Single-phase, sorted.

The P3 270A runs on 208, 220, 230 or 240 V single-phase in every welding mode, and on generators from 16 kVA — so it goes to work on the circuit most body shops already have, with no phase converter. Not sure what is on your panel? Send us a photo and we will tell you what it takes.

Built for the materials the OEMs are shipping.

Aluminum closures, high-strength steel structure, silicon-bronze panel bonding — the P3 has a feeder loaded for each.

AluminumPulse MIG with a dedicated 1.0 / 1.2 mm feeder and torch for OEM-grade aluminum panel and structural repair.
Steel · HSSSynergic short-arc and pulse on 0.6 – 1.2 mm wire for automotive-grade and high-strength steel.
CuSi · CuAlSilicon-bronze and aluminum-bronze brazing for panel bonding and low-heat joints on coated steels.
OEM programsApproved by BMW / Mini / Rolls-Royce, GM, Tesla and Rivian, and meets Volvo's published spec, per the GYS 2026 catalogue — USB-updatable as OEMs add alloys.

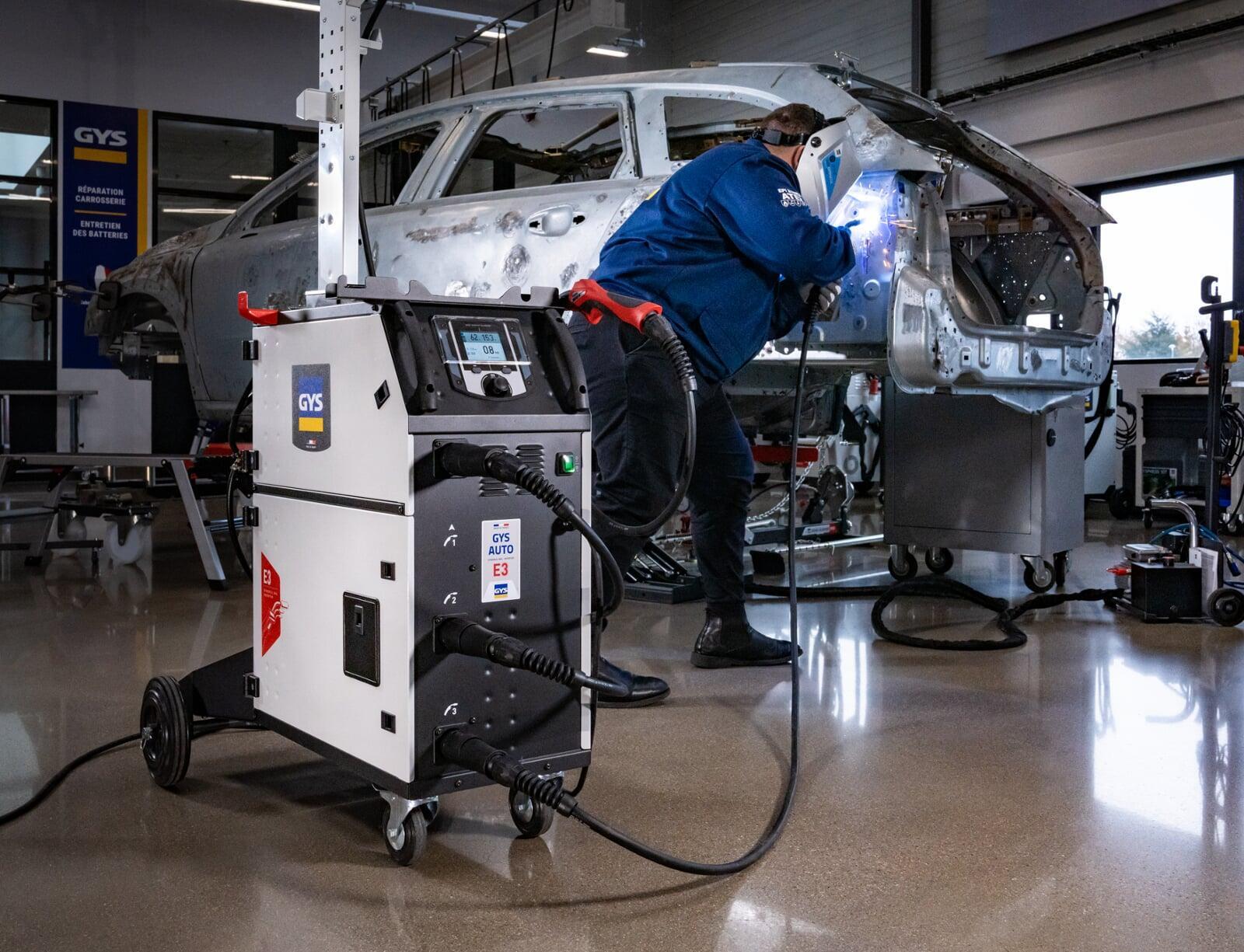

The P3 in action.

See the triple-feeder workflow on the vehicle.

System essentials & support options.

Keep the P3 in production with genuine GYS parts and factory protection.

Downloads & resources.

The official documents: brochure, datasheet, manual — OEM and electrical sheets to follow.

Datasheet request

Need the P3 spec in a different form?

Tell us what you are comparing it against and we will send the right document — datasheet, synergy list or electrical notes.

Ask for a Document

Deals you'll only see here at CRTE.

Open box, clearance and pre-owned GYS equipment — inspected, fresh consumables throughout.

Looking at the wider GYS range? Start at the GYS Collision Repair hub or browse GYS MIG welders and MIG welding parts.
